DSLRKIT 96watt 5 Port 4 PoE Switch 802.3af/at Power Over Ethernet Internal Power

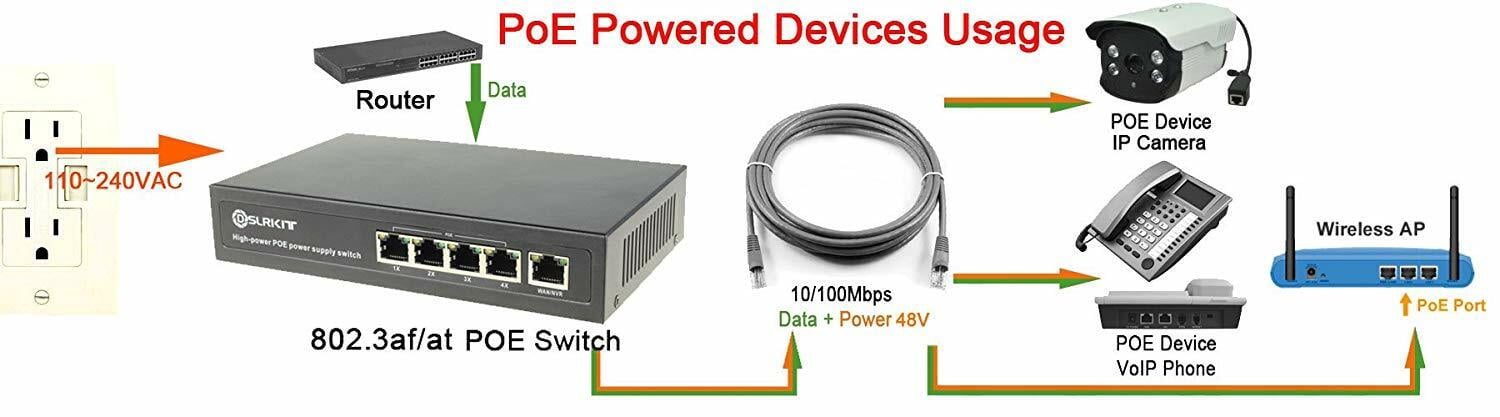

Basic Information<br>- 5 Ports (1 Uplink, 4 PoE) Power Over Ethernet Switch<br>- IEEE 802.3af/802.3at Endspan PSE (1,2+/3,6-)<br>- Auto Detection of Powered Devices<br>- Internal power supply, AC Input: 100V ~ 240V<br>- 48~51VDC, up to Max. 30W/port, 4 Ports Total Power Budget: 96Watt<br>- 10/100Mbps, Wall Mountable<br>Product Introduction<br><br>It is easy to connect. With both data and power transmitted over Ethernet from one unit, the PoE Switch reduces cabling requirements and eliminates the need for dedicated electrical outlets on walls, ceilings, or any hard-to-reach places. A single wire carries both data and power, lowering installation costs, simplifying installation efforts, and eliminating the need for electricians or extension cords. Equipped with 4 PoE interfaces, the switch is ideal for small businesses and workgroups that need to deploy PoE devices (such as wireless access points, IP-based surveillance cameras, or IP phones) easily, efficiently, and cost-effectively in any location.<br>Compatible with all 802.3af/802.3at devices, including Wireless Access Points, IP Phones, IP Cameras, Gateways, Switches, and more.....<br><br>Features (Detailed)<br>- PoE Chip: IC plus IP804, Switch Chip: IC plus IP175G<br>- Up to 30W of Power per Port<br>- Complies with IEEE 802.3af/802.3at PoE standard<br>- Compatible with All IEEE 802.3af/802.3at or Legacy Devices<br>- Safe: Low-power Devices Receive Only the Power They Need<br>- Safe and Reliable Power to WLAN Access Points<br>- Automatic Detection and Protection of Non-standard Ethernet Terminals<br>- Supports 10/100 Base-T Applications<br>- Compact Design Fits Easily in WLAN Access<br>- Plug-and-Play, No Configuration Required<br>- Internal Power Supply<br>- Each Port Supports Auto MDI/MDIX<br><br>Specification<br>ALL LAN/WAN Port<br>Standard 10/100Mbps Ethernet port. Supports 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode. Must work with 4 pairs UTP Cat5/5e/6 cable.<br><br>LAN Port 1-4<br>Supports any IEEE802.3af PoE Powered Device (PD) with automatic detection and protection for non-PoE Powered Devices.<br><br>LED Indicators<br>- Power (Orange, WAN Port)<br>- PoE In-Use (Orange, LAN Port)<br>- 10/100 LNK / ACT (Green)<br>Product Dimensions<br>182mm W x 114mm D x 36mm H<br><br>Weight:<br>570g (Switch Only)<br>Power Requirement<br>100~240V AC, 50-60 Hz<br>Power Consumption<br>96 Watts Maximum<br>PoE Standard<br>IEEE 802.3af<br>PoE Power Output<br>48-51VDC, Max. 30Watt/port, 4 Ports Total Budget: 96Watt<br>PoE Power Supply Type<br>Pin 1 &amp; Pin 2 (Power +); Pin 3 &amp; Pin 6 (Power -), Mode-A, Endspan<br>PoE Power Budget<br>System: 102W; PoE: Max. 96W<br><br>Regulation Compliance<br>FCC Part 15 Class A, CE<br><br>Operating Conditions<br>Temperature: 0~50 Degree C, Relative Humidity: 20~95%<br><br>Storage Conditions<br>Temperature: -10~70 Degree C, Relative Humidity: 20~95% (non-condensing)<br><br>Standards Compliance<br>- IEEE 802.3: 10Base-T<br>- IEEE 802.3u: 100Base-Tx<br>- IEEE 802.3x: Flow Control<br><br>Items Included<br>- 5-Port 4-PoE IEEE802.3af/at PoE Switch x1 (with Retail Box)<br>- AC Power Cable x1<br>- Rubber Feet x4<br><br>AC power plug is US type<br>12 Months Warranty from the date of purchase.

• Complies with IEEE 802.3af/802.3at PoE standards, equipped with IC plus IP804 PoE Chip and IP175G Switch Chip for stable performance.

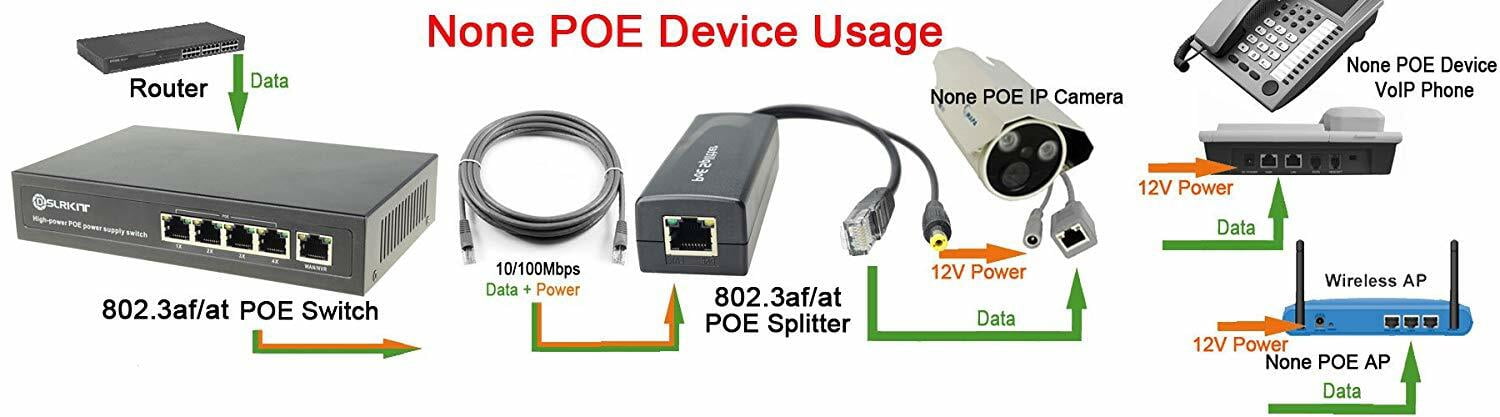

• 4 PoE ports with max 30W per port and total PoE power budget of 96W, supporting both standard PoE devices and legacy low-power devices.
• Auto-detection of powered devices (PDs) and protection for non-standard Ethernet terminals, ensuring safe power supply—low-power devices only receive the power they need.
• Plug-and-play design with no configuration required; supports 10/100Mbps transmission and auto MDI/MDIX for each port, easy to use.

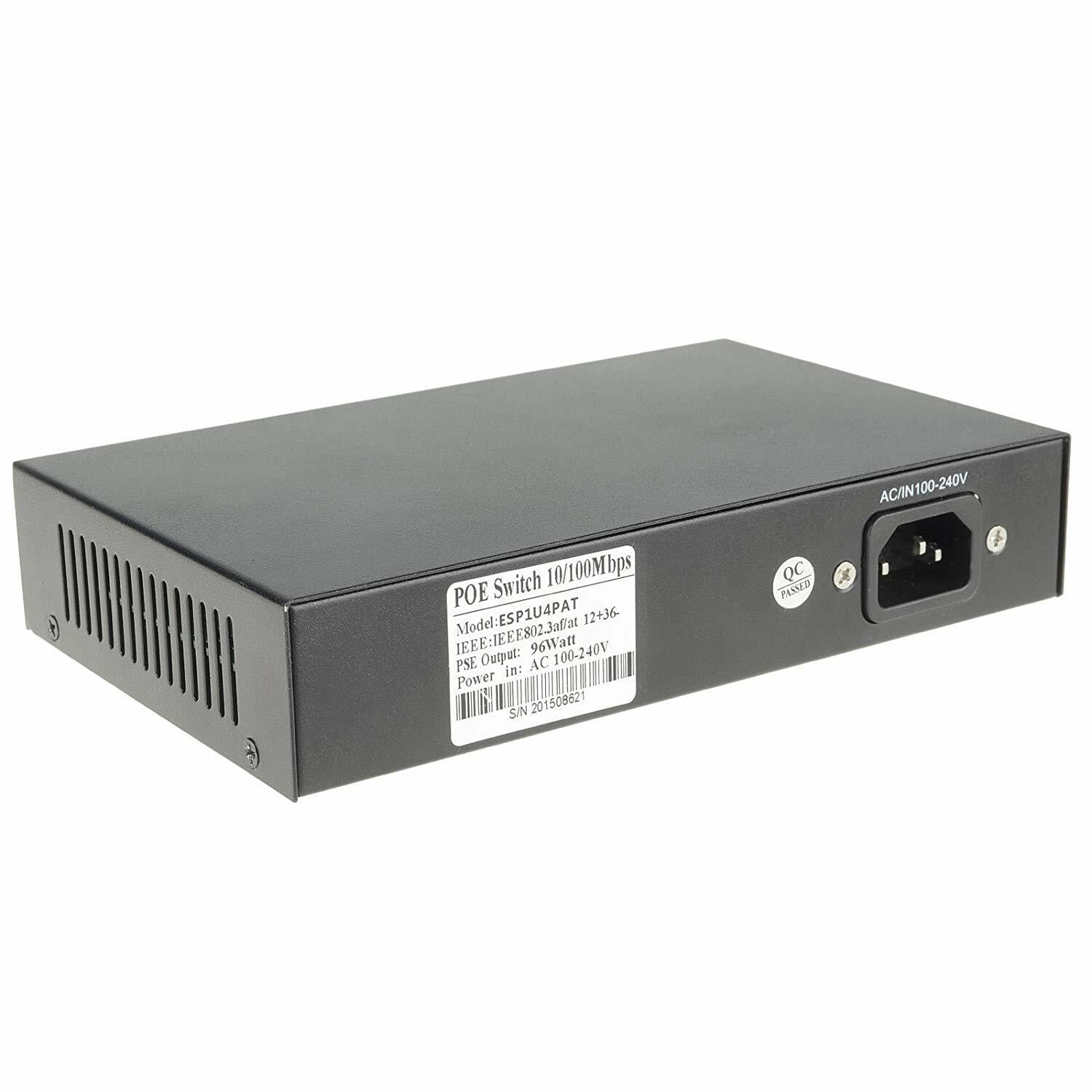

• Compact wall-mountable design (182mm W x 114mm D x 36mm H) with internal 100~240V AC power supply, suitable for WLAN access and small-space deployment.
