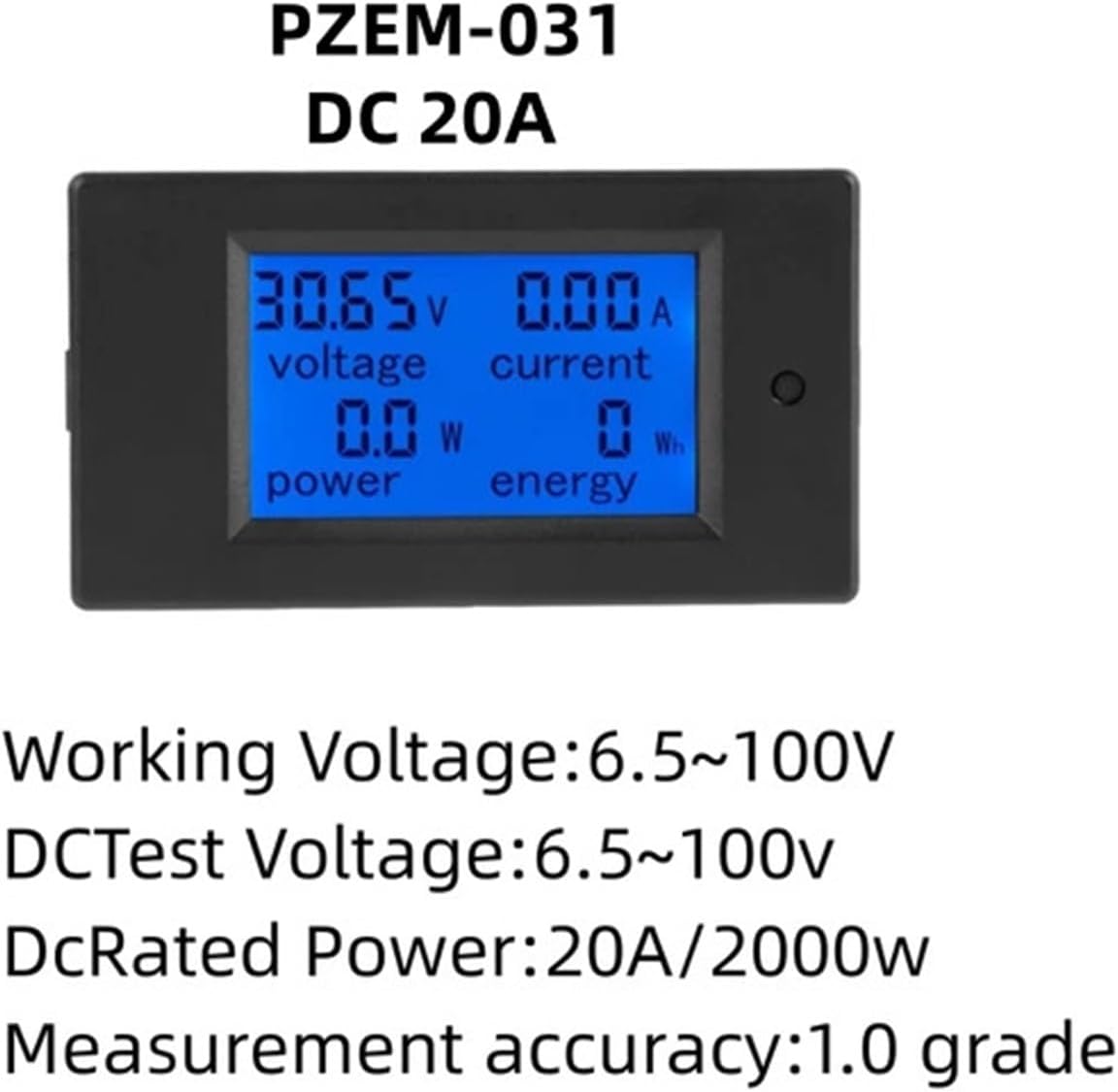

PZEM-051/061 Electricity Meter 20A 100A AC 80-260V DC 6.5-100V(DC 20A Meter)

Meter SocketsDC type1. Operating voltage: 6.5～100VDC2. Test voltage: 6.5～100VDC3. Rated power: 100A (20A)/10000W4. Measurement accuracy: Class 1.0Function:1. Electrical parameter measurement function (voltage, current, active power, electrical energy)2. Voltage alarm function (backlight and voltage flashing alarm when the voltage alarm threshold is exceeded).3. Energy key reset function.4. Save data when power is off.5. Large LCD screen (simultaneously displays voltage, current, active power, and electrical energy)6. Backlight function.Display format:1. Power: Test range: 0~10kWFor devices with a power output of 1kW or less, the display format is 0.0~999.9W.For 1KW and above, the display format is 1000~9999W.2. Electrical Energy: Test range: 0~9999kWhFor 10 kWh or less, the display format is 0~9999 Wh;For 10kWh and above, the display format is 10~9999kWh.3. Voltage: Test range: 6.5~100VDisplay format: 6.50～99.99V4. Current: Test range: 0~100A (0~20A)Display format: 0.00～99.99 Communication type1. Operating voltage: 80～260VAC2. Test voltage: 80～260VAC3. Rated power: 100A (20A)/22000W4. Operating frequency: 45-65Hz5. Measurement accuracy: Class 1.0Function:1. Electrical parameter measurement function (voltage, current, active power, electrical energy)2. Overload alarm function (backlight and power flashing alarm when the power alarm threshold is exceeded).3. Power alarm threshold preset function (power alarm threshold can be set).4. Energy key reset function.5. Save data when power is off.6. Large LCD screen (simultaneously displays voltage, current, active power, and electrical energy)7. Backlight function.Display format:1. Power: Test range: 0~22kWFor devices with a power output of 1kW or less, the display format is 0.0~999.9W.For power outputs between 1kW and 10kW, the display format is 1000~9999W.For 10kW and above, the display format is 0.1~22.0kW.2. Electrical Energy: Test range: 0~9999kWhFor 10 kWh or less, the display format is 0~9999 Wh;For 10kWh and above, the display format is 10~9999kWh.3. Voltage: Test range: 80~260VDisplay format: 80~260V4. Current: Test range: 0~100A/0~20ADisplay format: 0.00～99.99APreventive measures:1. This module is suitable for indoor use only. Do not use it outdoors.2. The applied load should not exceed the rated power.3. The wiring sequence must be correct.4. It cannot be used in inverter, thyristor, or other similar circuits.notes:There are three types of power: active power (P represents W), reactive power (Q represents Var), and apparent power (S represents VA).The power of our product is active power.The formula for calculating active power is: P = U * I * cos, where cos represents the power factor. For purely resistive loads (such as incandescent lamps, heaters, etc.), the power factor is generally close to 1. For inductive and capacitive loads, the power factor is between 0 and 1. Therefore, when testing purely resistive loads, the power P is basically equal to or close to U * I. ==========Battery included: No Dimensions: 89.6*49.6*24.4mm (Length*Width*Height)Operating temperature: -10 to 60 degrees CelsiusOutput voltage: 0-9999.99kWhAccuracy class: 1.0Measurement energy range: 80-260VACNumber of phases: Single phaseModel: PZEM-051/061Maximum operating current: 100A - 119ARated voltage: 220VPower supply: Alternating currentDisplay type: Number onlyDIY supplies: electrical appliancesPlace of origin: Mainland ChinaCertification: CE
